Prefabricated wall, ceiling, roof panels

Products

We produce prefabricated wall, ceiling and roof elements for different types of buildings

EXTERNAL WALL ELEMENTS

Our main products are external wall elements, mainly used as outside facade elements for multi-story residential and commercial buildings.
We produce the facade elements from timber frame or termo profile.

Mostly the facade elements are non-load bearing. Elements with installed windows are mounted between concrete slabs to quickly close and finish the outer envelope of the building. If the house will be built story by story and the external wall elements should take also some load from the ceilings and upper stories, we can install metal posts inside our wall elements in the factory.

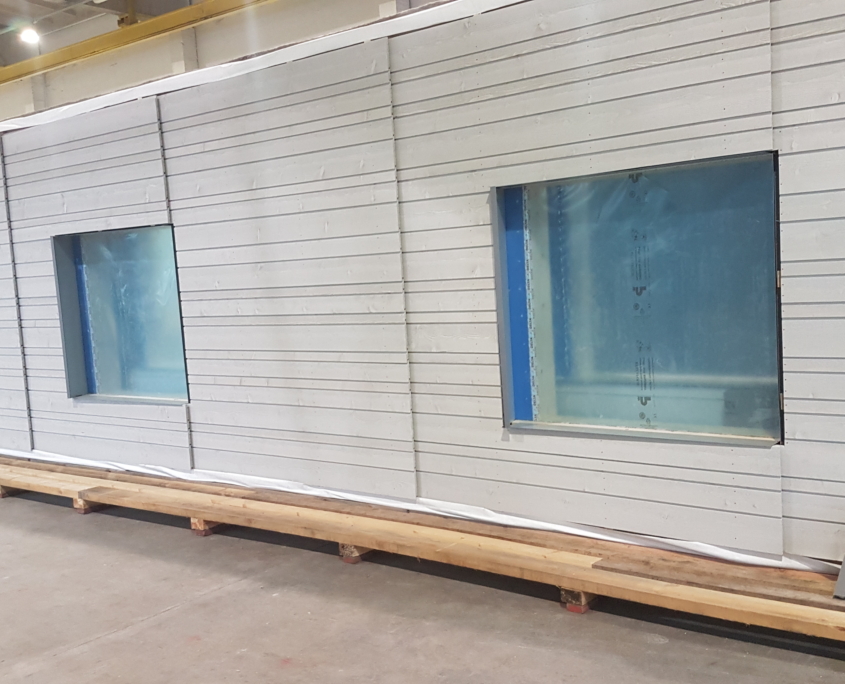

Produced elements in the factory

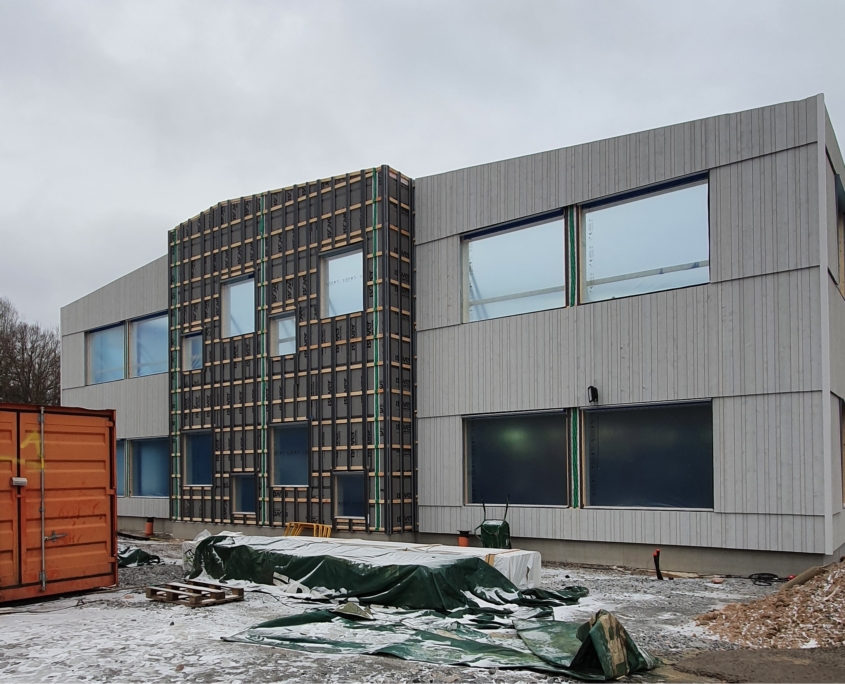

Elements installed on site

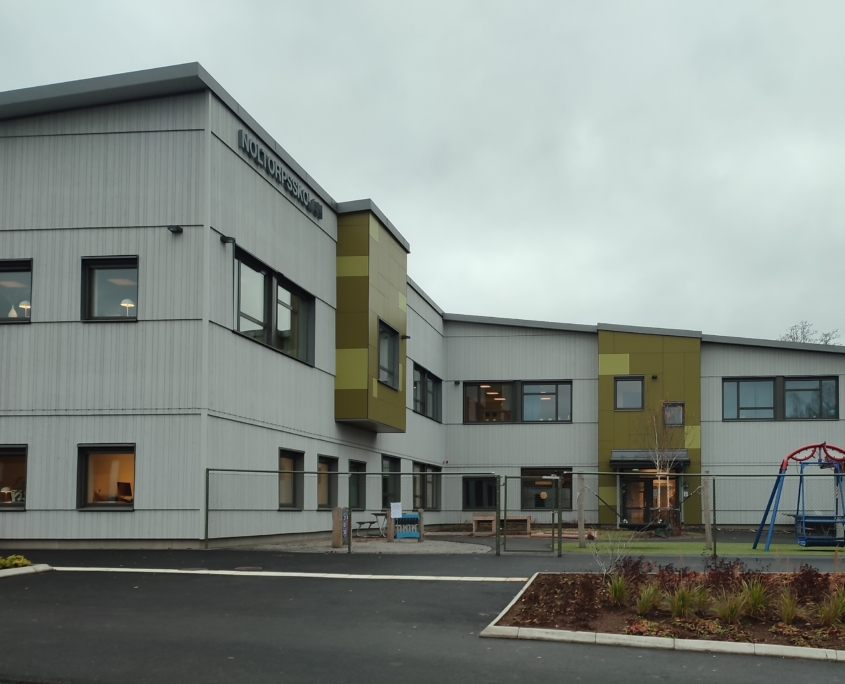

Finished school building ready for students

Description

Starting from outside:

– final finishing material
– batten(s)
– wind protection
– steel or timber frame
– main frame insulation
– vapour barrier
– batten
– inside insulation
– inside gypsum board

Drawing

steel

Previous Next

Element sizes

Max length of an element 13,6 m, height 3,6 m.
Max opening size up to 3,5 m.

Elements can be finished with different finishing materials.

Almost any finishing material can be used at the building site to complete the building.

STEEL OR TIMBER FRAME

We design and produce both of these solutions according to clients wishes and project specifications

Steel frame elements

The Nordicon thermoprofile steel elements system is developed by Ruukki Corporation.
Elements are built to hot galvanized metal frame that is designed for facade elements. The perforation cuts through the cold bridges reducing the thermal conductivity of the panel which enables to meet the energy efficiency standard of the modern construction industry.

Weight

Lightweight and sturdy

Energy efficcient

Low U value

Moisture resistant

Non organic material

Accurate measures

Stable material structure and precise unchangeable measures

Eco friendly

Less waste, recyclable

Usability

Easy to work with

Dimensions to wind loads

Sound insulation and resistance to fire

Timber frame elements

Timber elements are prefabricated from Nordic originated stress graded quality construction timber and insulated.
Timber elements are used in facades, roof and ceiling elements.
Timber frame elements are lightweight and thin but sturdy and energy efficient at the same time.

Weight

Lightweight elements

Energy efficient

Low U value

Cost efficient

Less expensive than steel
